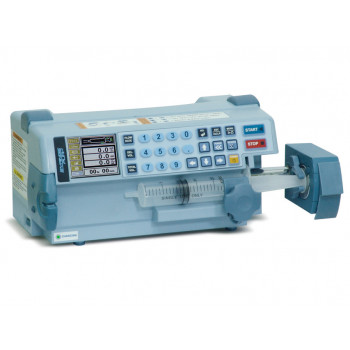

SYRINGE PUMP SP 8800

€ 1.251,00Excl. BTW
3 werkdagen

Productbeschrijving

SP-8800 provides easy syringe installing through one-touch method by slider hook, simple and easy setup process with its numerical silicon keypad. Color LCD displays infusion information dramatically shortcut key manages easy approach for frequent functions. K.V.O. rate, purge rate, bolus and anti bolus can be setup as operating application. Supplied with battery.

• Flexible flow volume setting.
• Full program dosage feature (optional): it automatically calculates flow rate by patient's weight, injection's mass and melting.
• Keep Vein Open (K. V. O.) feature: When reached to the preset value, it converts to low flow speed of 0.1ml/h automatically to prevent flow route clog due to blood coagulation.
• Standard compatibility with 5 major brands of syringes: Syringe brand setting feature enables you 5 choose, from following syringe brands: BD, TERUMO, ARTSANA, PENTAFERTE, SUNGSHIM. Each pump can be calibrated for up to 10 different syringes. Alarm and notification feature: It notifies errors and emergencies with LED light and buzzer. Simultaneous visual and audio alarm. Occlusion error range setting: You can set the pressure level of occlusion stage to High, Medium and Low by patient's age condition. Suitable also for VET use.

- IV clamp included
- Colour display
- Automatic set-up system (flow rate, time, delivery volume)
- Easy and quick installation of syringe, just in five seconds

Technical Specifications
• Flow volume setting range:
- Syringe 10ml : 0.1-300ml/h
- Syringe 20ml : 0.1-400ml/h
- Syringe 30ml : 0.1-500ml/h
- Syringe 50ml : 0.1-1200ml/h
• Flow volume error margin: ±3%
• Infusion limit volume range: 0.1~999.9ml (0.1 ml infusion interval)
• Total estimated volume range: 0.1~999.9ml (0.1 ml infusion interval)
• K.V.O rate (Vein maintaing function): 1 ~ 10 ml/h adjustable
• Size: 220 x 130 x 108 mm
• Weight: 2 kg
• Rapid flow volume (Purge): 0.1 ~ 1200 ml/h adjustable
• Bolus 0.1 ~ 1200 ml/h, 0.1 ~ 1000 ml adjustable
• Nurse call DC12V, 1A
• Alarm features:
Occlusion, K.V.O. (infusion completion), standby, near empty, low battery, device malfunction (CPU error), clamp/handle lever/slider disengaged, syringe disengaged.
• Special features
Keypad lock, shortcut key, retain memory, remaining time, alarm repeat, open system, K.V.O., purge, bolus, anti bolus, occ. level. history call-back.
• Power:
- AC 110V / 220V, 50/60Hz and DC9.6V inner source adapter DC24V/1A
- Available on request 110V/60Hz
• Maximum power consumption: 18VA
• Electric protection levels: Class II B, inner source device, CF type
• Waterproof level: IPX2
• Battery type: Ni-MH
• Battery using time: 5 hours at (5ml/h).
• Battery charging: time Minimum 6 hrs.
• Battery life: about 6 months.

Extra informatie

Artikelnummer: 04142135205000
Levertijd: 3 werkdagen
