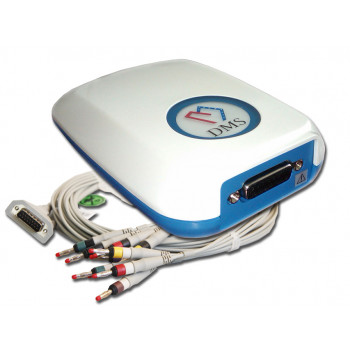

Innovative PC-ECG device that can be connected to your PC via USB port. No power cable is required as it is powered through the USB PC cable. The unit is supplied with a 10 banana plug ECG cable (length 350 cm) and a powerful interpretation software (english, italian, spanish).
Main software features: - 12 lead resting ECG with interpretation - Vector cardiograph (VCG) with interpretation - Electronic ruler to measure ECG waves - 3D VCG animation to diagnose myocardial infarction and difficult arrhythmia - Database serial comparisons make it possible to study the changes of the disease of the same patient. Can print reports in B/W or colour - Multi hour ECG Monitoring with holter analysis - Simple exercise stress test with report - Tests twice comparison
Technical Specifications
• Communication port: USB - Support HL7, Dicom interface • Size: 196 x 143 x 30 mm - 550 g • Power source: 5V DC (from PC USB port) • Patient insulation: 4000 V AC • Defibrillation protection: built in box • PC minimum requirements: Windows 2000, XP Vista and Windows 7 • CPU = 1 GHz - HD = 40 G - RAM = 256 M
