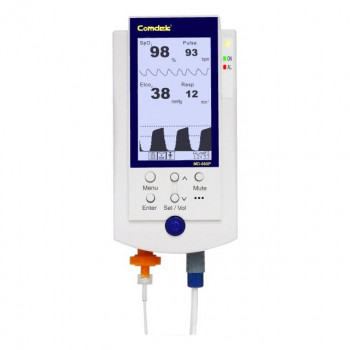

Portable multifunctional Capnography monitor providing SpO2, pulse, EtCO2, Respiration with accuracy and reliable performance. Light and large LCD display providing graphical SpO2, EtCO2 and Trend function all in one design. Through optional software link to PC via USB. Supplied with adult sensor, AC adapter, sampling tube, airway adapter, filter cartridge, carrying bag, 4 AA rechargeable batteries.
• 72 hours memory with trend function
Technical Specifications
• SpO2 saturation - Range 0% to 100% - Accuracy ±2% between 100% to 80% • Pulse Rate - Range 30 bpm to 250 bpm - Accuracy ±1% of full scale • EtCO2 - Range 0 mmHg to 50 mmHg - Average 4 breaths of EtCO2 • Respiration - Range 0 l/min to 99 l/min - Average 8 breaths of respiration rate • Default Alarm Settings • SpO2 upper limit: 100% SpO2 lower limit: 85% • Pulse rate upper limit: 150 bpm Pulse rate lower limit: 30 bpm • EtCO2 upper limit: 50 mmHg EtCO2 lower limit: 0 mmHg • Resp upper limit: 99 l/min Resp lower limit: 0 l/min • Power: 4 AA batteries 6 volts or AC/DC adapter
