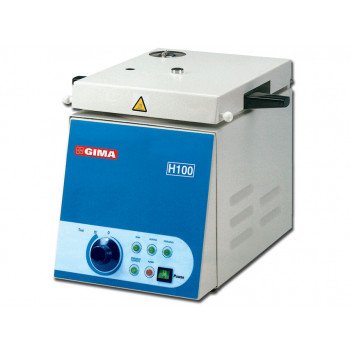

H100 GIMA AUTOCLAVE - 9 litres

Available in 2 versions

€ 1.060,00Excl. BTW

* Verplichte velden

€ 1.060,00Excl. BTW

Productbeschrijving

This autoclave is safe and easy to use. It is used to sterilize turbines, rotating instruments and all hand-pieces which can be sterilized up to 125°C. All this with a sterilization cycle of 15 minutes. It is formed by an external box of painted steel and a stainless-steel 18/10 body without any welding, it has three safety valves.

Safety systems:

  • Safety lock, which prevents the opening of the door during the sterilization cycle; the door can only be opened when pressure inside the chamber is levelled to the ambient one.
  • Safety valve for vapour exhaust in case of damage with inside overpressure > 2.5 bar.
  • Safety thermostat which occurs if the inner temperature of the chamber rises over 135°C.
  • Thermodynamic vacuum.

Technical Specifications:

  • External size: 258 x 300 x h 370 mm
  • Size of the sterilizing chamber: Ø 220 mm - h mm 215
  • Removable basket: Ø 210 mm - h mm 215
  • Sterilizing liquid: distilled water
  • Absorbed power: 1500 Watts
  • Operating voltage: 230 V - 50/60 Hz
  • Fuses: type 6.3 x 32 mm - 8A
  • Operating temperature: 125 °C
  • Sterilizing time: 15 minutes
  • Operational pressure: 1.6/1.7 bars (170/180 KPa)
  • Standard accessories
  • Stainless steel basket
  • Distilled water bottle 1 l
  • Rauclair tube
  • Electric cable
  • User manual: english, french, spanish, german, Italian

Extra informatie

Artikelnummer: 04149435656xxx
