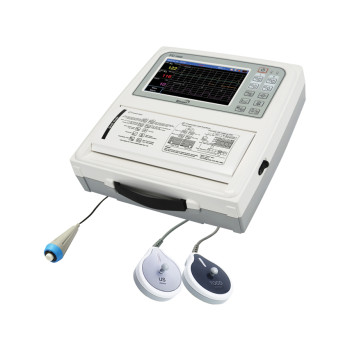

GIMA FC1400 SINGLE FOETAL MONITOR

Productbeschrijving

FC1400 SINGLE FOETAL MONITOR Antepartum foetal monitor to measure Foetal Heart Rate (FHR), degree of material uterine contraction (UA: Uterine Activity), foetal movements (FM) Superior data display - 7" full touch screen colour TFT LCD (800x480) - 2 display modes: graphic and text modes - 72 hours of memory capacity Extreme data accuracy and access - high-accuracy and wide detection area - easy on-screen scrolling function - endurable watertight probes, 1 MHz to minimize broken FHR waveforms even if the fetus moves Printout - CTG interpretation report - both standard and A4 size paper usable - normal fax paper usable Other advantages - Wi-Fi central monitoring up to 16 beds (Option) - PC compatible - internal battery lasting 2-hours (Option) - power adapter 100-240 V, 50-60 Hz - multilingual internal software: GB, FR, IT, ES, PT, DE, PL, RO, RU, CZ, HU, BG, TR, KR, CN. Recommended after week 30. Technical Specifications Dimensions 296x97.5xh 305.5 mm - Approx. 2.9kg Display 7" TFT Wide LCD screen (800x480) Thermal array printer: print speed: 1, 2, 3 cm/min (real time) / paper feeding function Power input: 100-240 V, 1.5-0.7 A, 50-60 Hz / output: +18 V = 2.8 A Li-ion battery (option) 4 hours (charging) - 2 hours (discharging) External link LAN, Wi-Fi, USB memory Foetal heart rate input signal: ultrasound pulsed doppler ultrasound frequency: 1.0 Mhz, 975 Khz ultrasound power: <10 mW/cm2 FHR detection method: autocorrelation FHR range: 50-210 bpm ±1 bpm (120-160) Foetal movement measurement detection source: ultrasound pulsed doppler, event marker Uterine contraction input source: external transducer reference control: one touch switch, auto zeroing measurement range: 0-99 Auto CTG analysis average baseline FHR number of TOCO number of acceleration number of deceleration late deceleration early deceleration variable deceleration high episode low episode short term variability signal loss
