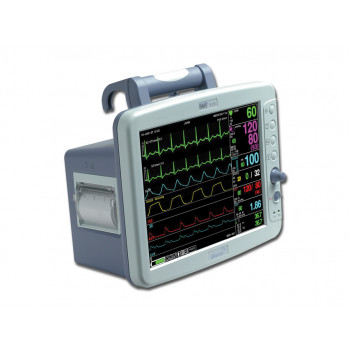

GIMA BM5 veterinaire patiënt monitor

Productbeschrijving

• High-performance ECG analysis ST level PVC count display 13 kinds of Arrhythmia analysis 7 or 12 channels
• 10.4" colour TFT screen with 6 waveforms
• Visible alarm lamp handle
• SpO2 technology with very low-perfusion detection
• SpO2 pitch tone
• 58mm built-in chart recorder
• Graphical and tabular trends of printing
• LAN or wireless LAN
• 120 full hours trend data stored
• Direct DC input for vehicle transport
• Li-ion battery with long life time
• Connection to central monitoring system
• Selectable software language (English, French, Spanish, Italian, German)
• Standard accessories as BM3 monitor - with 10 leads ECG cable (33778 only)

Technical Specifications:
GENERAL

• Dimensions/Weight: 270x185xh 250 mm/4 kg
• Trace: 6 waveform (ECGx2, SpO2, RR or EtCO2 IBPx2)
• Indicators:
• Categorized alarms (3 priority levels)
• Visual alarm lamp handle
• Heart rate
• SpO2 pulse pitch tone
• Battery status,
• External power led
• Thermal printer: 25, 50 mm/sec (paper width 58 mm)
• Battery: Li-ion (2 hours operating time)
• Interfaces:
• Lan digital output for transferring date
• Nurse call system connection
• Defibrillator sync. output
• DC input connector: 12 to 18 VDC, 2.5A max
• Operating voltage: 100-240 V, 50-60 Hz

SpO2

• % Saturation Range: 0% to 100%
• Pulse Rate Range: 0 to 254 bpm
• SpO2 Accuracy: 70% to 100% ±2 digits
• Pulse Rate Accuracy: ± 2 bpm

ECG

• Lead tipe: 3-lead, 5-lead (33780), 10-lead(33779)
• Lead selection:
• 3-lead: I, II, III (33780/1)
• 5-lead: I, II, III aVR, aVL, aVF, V (33780/1 only)
• 10-lead: I, II, III aVR, aVL, aVF, V1, V2, V3, V4, V5, V6 (33779 only)

ECG Waveforms:

• 3-lead 1 channel (33780/1 only)
• 5-lead: 3/7 channels (33780/1 only)
• 10-lead: 3/12 channels (33779 only)Hearth rate range:
• Adult: 30-300 bpm
• Neonate/pediatric: 30-350 bpm
• Hearth rate accuracy: ± 1 bpm or ± 1%, wichever is greater
• Sweep speed: 6.25, 12.5, 25, 50 mm/sec
• Filter:
• Diagnostic mode: 0.67-150 Hz
• Monitoring mode 0.67-40 Hz
• Surgical mode: 5-25 Hz
• S-T Segment detection range: - 2.0 to 2.0 mV
• Arrhythmia analysis: Asystole, Vtach, Vfib, Bigeminy, Accvent Couplet, Irregular, Pause, Pvc, Ront, Trigeminy, Vbrady, Shortrun Diagnostic analysis: 120 kinds (33779 only)
• Pacemaker detection mode: Indicator on waveform display (user selectable)
• Protecion: against electrosurgical interference and defibrillation

NIBP

• Technique: O scillometric with linear deflation
• Measurement Modes: Manual-Automatic-Continuous
• Measurement range:
• Adult pressure: 20 to 260 mmHg
• Pediatric pressure: 20 to 230 mmHg
• Neonate pressure: 20 to 120 mmHg
• Cuff pressure display: 0 to 300 mmHg
• B.P. measurement range:
• Systolic: 40 to 270 mmHg
• Mean: 20 to 230 mmHg
• Diastolic: 10 to 210 mmHg
• Adjustable Cuff Inflation Pressure

RESPIRATIONS

• Range: 5 to 120 breaths/min
• Accuracy: ±1 breath/min
• Apnea alarm: yes

TEMPERATURE UNIT

• Range: 15° to 45°C (59°F to 113°F)
• Accuracy: ± 0.1°C
• Compatible with: YSI Series 400 Temperature Probes

IBP

• Channels: 2
• Measuring range: -50 to 300 mmHg
• Measuring accuracy:
• ± 1 mmHg (<100 mmHg)
• ± 1 % of reading(>100 mmHg)
• Pulse rate counting range: 0 to 300 beats/min
• Zero balancing:
• Range ± 200 mmHg
• Accuracy ± 1 mmHg
• Drift ± 1 mmHg over 24 hours
• Transducer sensitivity: µ V/V mmHg

EtCO2

• Measurement mode: Sidestream
• Measurement range: 0~150 mmHg 0 to 19%
• Respiration range: 2~150 bpm
• Accuracy:
• ± 2 mmHg,0~40 mmHg
• ± 5%, 41~70 mmHg
• ± 8%, 71~100 mmHg
• ± 10%, 101~150 mmHg
• Respiration accuracy: ± 1 breath per minute
