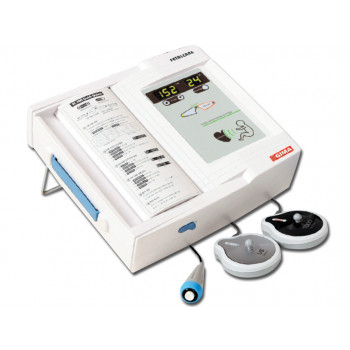

Cost-effective single fetal monitor Extreme ultrasound doppler sensitivity - High-accuracy with 1 Mhz frequency - Automatic/manual Foetal Movement detection - Auto NST (Non-stress test) function from 10 min. to 1 hour. 1 h
Data printout - CTG analysis printing - A4 size chart paper withperforation line - Plain thermal fax paper usable - Print speed 1, 2, 3 cm/min
Easy-to-use - One- touch operation and easy setup - Alarm function (FHR high-low) - s/w upgrade via internet
• UC: - Frequency response: DC 0.5 Hz - Reference (zero) control - Measurement range: 0~99 units
• Printer: - Thermal array type - Print speed: 1, 2, 3 cm/min - Paper feeding function
• Display: - 7-segment LED - 2 channels (HR, UC)
• Indicators: - Heart rhythm with signal quality - Alarm, printing on/off state - AC power
• Set-up: - Alarm upper/low limit value - Record speed, paper grid, Fetal - Movement On/Off, Time/Date, Print contrast, Auto print period
• Power: - Input: AC 100-240V (50/60 Hz) - Output: DC 18V, 2.5A - Consumption: 80W
• Dimensions: - 296(W)x 305.5(H) x 92.5(D)mm - Weight: approx 2.9 kg
• External link: - RS-232C: Program Download
ANALYSIS FUNCTION - Period: test period - Average baseline FHR (bpm) - Number of UC (frequency / h) - Number of acceleration (frequency / h) - Number of deceleration (frequency / h) - Late DEC: number of late deceleration - Early DEC: number of early deceleration - Variable DEC: number of variable deceleration - TACHY: moderate (>160 bpm): period of that FHR is between 160~190 (minutes) - TACHY: severe (>190 bpm): period of that FHR is over 190 (minutes) - BRADY: moderate (<110 bpm): period of that FHR is between 90~110 (minutes) - BRADY: severe (<90 bpm): period of that FHR is lower than 90 (minutes)
Standard accessories
• Doppler transducer (2 for Twins Foetal Monitor code 29531) • Toco transducer • Event marker • Printer paper • Gel • Belts • Manual
