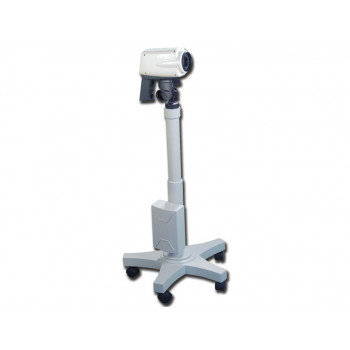

COLPRO digital video colposcope is known for its ruggedness, versatility, precision and ease of use. These devices incorporate latest digital signal processing technology to provide high resolution images for effective colposcopy diagnosis & treatment.
Wide auto focus range: Automatically focuses on the object up to 30 cm irrespective of the patient movement during procedure. Electronic green filter: Enhances vascular discrimination without any light loss. Continuous zoom: 1-40X zoom range allows you to examine the cervix at a desired level of magnification. E-flip & mirror image: Powerful functions which ensure extended attention to the minutest details. High MCD super bright shawdowless light: Improves the quality of image which has 6000° K color temperature to produce natural color of tissues & vessels. 1.200.000 pixels: Responsible for unmatched & crystal clear image. It delivers excellent image quality in its class. Magnification & real time display: Real time display of magnification & acetic acid test timer helps to see the best image at desired magnification level. 2-video output: Output can be taken on two different video monitorscomputers simultaneously. Universal connector: can be connected to any monitor with y/c or BNC video input.
Technical Specifications:
Image processor: Sony colour CCD
Pixels: 1.200.000
Resolution: 825 TV Lines
E-flip: yes
Mirror image: yes
Electronic Shutter: automatic
S/N ratio: >48 db
Illumination: high MCD super bright white shadowless LED light
Color temperature: 7000° K
Test timer: yes
Electronic green filter: yes (5 steps)
Focus: automatic or manual
Focus distance: 20-30 cm
Zoom: 1-45X
Viewing area: Ø 170 mm - 10 mm
Depth of view: Ø 200 mm - 5 mm
Magnification display: Yes
Video output: SD: 1 x y/c 1 x BNC compisite
Safety standard: complies to IEC 60601 including EMC
