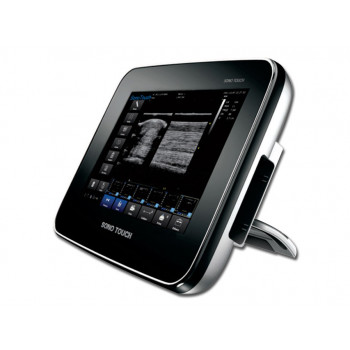

Chison Sonotouch 10 touchscreen echografie unit

Touchscreen kleuren doppler

€ 8.960,00Excl. BTW
30 werkdagen

Productbeschrijving

Lightweight, portable, small size, touchscreen ultrasound devices.

Main features:
- Display mode: B, B/B, 4B, B/M, M and Colour mode (only 33921). In the M or B/M mode, 4 steps sweep speeds.
- Multi-step display magnification, depth enhancement
- Setting adjustment of total gain, and 8 segments of TGC slides for selection and adjustment
- Multifocal firing focus, edge enhancement, frame averaging, compound
- Image freezing and storage function, built-in 4 GB (33920), 16 GB (33921) high-speed memory and external USB memory disk can be connected to the system for mass storage through USB port. Stored images can be retrieved for analysis.
- 256 frames of real-time images can be stored in Cine-memory
- Probe scanning direction can be changed and the image can be reversed in left/right, up/down direction
- Measurements of distance, area, circumference, volume, OB etc. Automatic calculation of OB and cardiology. Direct display of gestation age, expected date of child delivery and direct measure of heart rate
- Real-time clock displays date and time automatically
- Display of body marks with corresponding probe position indication
- Annotation function in image area of the screen. Special annotation terms for different exam-mode can be added according to user's requirement
- Battery operated, battery life up to 2.5 hours


Technical Specifications
• Button free screen and waterproof front panel
• Select your applications from visual icons
• Take measure with your fingers, no trackball (accuracy 1 mm)
• Adjustable angle stand converts into carrying handle
• Refine the image with easy, touch driven TGG, focus and depth

Extra informatie

Artikelnummer: 04139233920000
Levertijd: 30 werkdagen
