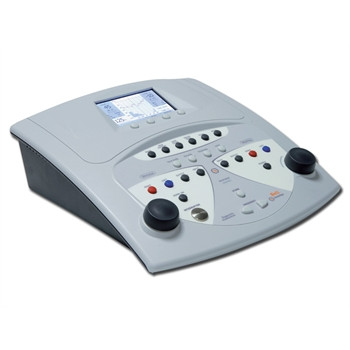

Bell is a basic diagnostic audiometer performing fast and accurate air and bone conduction threshold examinations. Simple operation, fast and reliable automatic examination mode, user-friendly interface and easy portability make Bell the ideal instrument for private clinics, multi-specialist clinics and occupational medicine application.
- Pure tone audiometry in AC and BC - Hughsone-Westlake auto threshold test - Colour graphic display· - Internal memory for 100 patients - Cost effective solution - Supplied with air conduction phone and vibrator for bone conduction. - Made in Italy
Manual: GB, FR, IT, ES, DE, PT
Technical Specifications
• Type of device Hybrid audiometer • Class (EN 60645-1, ANSI S3.6) 3 diagnostic • Output AC, BC • Masking NBN, WN • Insert masking earphone Yes • Warble tone Yes • Pulsed tone 0.5 Hz, 1 Hz, 2 Hz • Frequency range 125 - 8000 Hz • Maximum output intensities - AC: -10 to 120 dB HL - BC: -10 to 80 dB HL • Attenuator step 5 dB • Automatic audiometry HW auto threshold • Talk over Internal or external microphone • Display type Colour graphic • Display size resolution 4.3", 480x272 • Internal memory 100 patients • Operating voltage 100-240 V, 50/60 Hz • Dimensions 32x32x9 cm (12.6x12.6x3.5 in) • Weight 1.8 kg (4.0 lbs)
Standard accessories
• TDH-39 supra-aural headphones • B71 bone vibrator • Patient response switch • Plastic cover sheet • Medical grade power supply • User Manual
