SPECIALISTIC LOW BED

Productbeschrijving

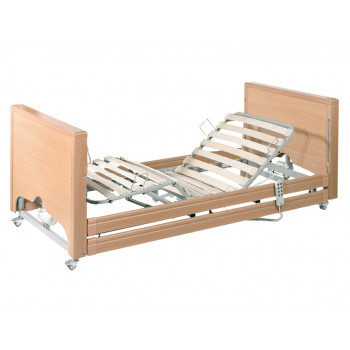

Three-joints, four sections bed with adjustable height from 23 to 63 cm with full electrical movements. All welded mainframe made of rectangular steel tube 50 x 25 x 2 mm. Mattress platform with flexible wooden staves, complete with mattress-hold guides. Backrest-section and leg-section adjustable by means of two independent electric motors 24V D.C. and push-button. Foot-section adjustable by means of a rack device. Fixed pelvis-section. Removable head and foot-end frames made of natural beech finish wood with solid corners and edges. Legs fitted with 4 castors Ø 100 mm with independent central brake.

Technical Specifications
• Size of platform: 900 x 2000 mm
• Platform height: 230-630 mm
• External measures: 1030 x 2140 mm
• Height of bed end from mattress platform: 50 mm
• Max. load: 140 kg
• Operating power: 230V - 50 Hz
