The convincing feature of the PRIMEDIC™ HeartSave product line is its easy, safe and speedy operation. With the new biphasic "Current Controlled Defibrillation" pulse, we are setting new standards in defibrillation technology. The device performs an automatic ECG analysis within 12 seconds and decides whether a defibrillation is necessary. Then a touch of a button is enough to trigger the life-saving electric pulse that eliminates the ventricular fibrillation. Thus, valuable seconds and minutes are used to save life.

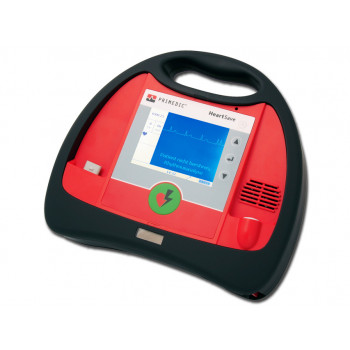

PRIMEDIC™ HEART SAVE 6 WITH MONITOR (cardio version), AKUPAK LITE RECHARGEABLE BATTERY AND CLIP CHARGER
In addition to the AED-M features, Heart Save 6 includes semi-automatic mode, 6-channel ECG leads and the manual mode for professional users.
Main features:
- One-button operation
- Intuitive and easy handling
- Status indicator
- Can be operated either by Lithium-Battery or Lithium-ion rechargeable Akupak Lite
- No energy selection required
- Current controlled defibrillation
- SaveCard, at least 24 hours, for internal ECG and voice recording
- Periodic self-test (daily, monthly, yearly)
- Dim. approx. 26 x 26 x 8.5 cm
- Weight approx.: 2 kg
- Compliance with environment tests for fixed wing aircrafts and helicopters
- German Lloyd certification (for use in maritime environments)
- A range of 4 models is available for use on patients > 1 year
- EN 1789
- AHA/ERC GUIDELINES 2010 CONFORMITY
- IP55 WATERCLASS-PROTECTED
- MADE IN GERMANY
Technical Specifications:
- Defibrillation:
- Wave: biphasic, current controlled pulse
- Energy 140-360 j
- Charging time: < 12 sec
- Operating modes: asynchronous
- ECG:
- Lead: I, II, III, aVr, aVf, aVI
- Patient's impedance range: 20-200 Ohm
- Heart rate: 30-300 per min
- VF:VT Detection:
- Manual override
- Analysis time 6-12 sec
- VF threshold 0,2 mV
- Asystole threshold <0,2mV
- Artefact-Pacemaker detection
- LCD Monitor:
- 95 x 72 mm (diagonal 4.7"/120 mm)
- 320 x 240 (pixel size 0,36 x 0,36 mm)
- Storage battery status display
- Speed 25 mm/s
- Heart rate, number of defibrillation, number of VF/VT,Total resuscitation time
- Electrodes:
- Non polarized electrodes, 2 years storage
- Cable length: 1.5 m
- Data backup:
- Internal memory 8 MB backup
- Removable memory 32-128 MB
- Voice recording
- Power supply:
- Lithium battery or Rechargeable (Power pack 90-260 V, 50/60 Hz)
- Battery: Lithium | Rechargeable
- Rechargeable AkuPak Lite (Power pack 90-260 V, 50/60 Hz)
- Battery: Rechargeable Li-ion
- Type: LiMnO2 | NiCd
- Battery storage: 6 Years
- Discharges: 110 | 56
- Monitoring: 11 h | 5 h
- Voltage: 16 V | 10,6 V
Standard accessories:
- AkuPack Lite, rechargeable battery with clip charger
- Save pads
- Data and voice recording
- Manual: Italian, French, German, Polish, English, Spanish, Greek, Portuguese
- We can provide other following languages: (Please specify with order) Available in 40/60 days.
- voce + manual: BG, CZ,DK, FI, HR, HU, MK, NL, NO, RO, RU, SE, SI, TR, AE, CN IR, TH.
Extra informatie
| Artikelnummer: | 04141533453xxx |
|---|
