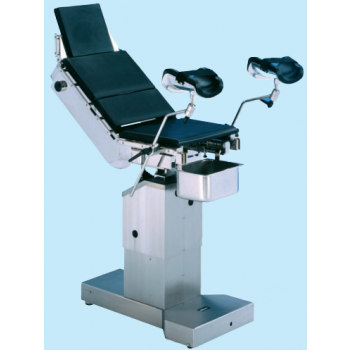

GIMA TRS OPERATING TABLE semiautomatic (need battery charger = code 27559)

€ 42.000,00Excl. BTW
30 werkdagen

Productbeschrijving

Designed to satisfy surgical functionality, practicality, quickness and easy maintenance. they allow, with proper accessories, to satisfy every basic surgical activity

- Table top
Divided in 5 sections (head, back, pelvis, 2 indipendent leg sections) with stainless steel structure and plexiglass to allow x-ray permeability and easy cleaning. Table top is pre-arranged for the insertion of x-rays holders all over its length.
Accessories holder (25x10 mm) in stainless steel, covers table top length on both sides.

- Telescopic column
Square and of limited size, covered by anodized aluminium (27560) or stainless steel (27562/4/5/6)), it allows up and down movement (approx. 70-100 cm) by a foot pedal placed at the base through a closed oleodynamic circuit with oil-tight pump avoiding any oil leakage (27560/2/4) or by remote control (27565/6).

- Mattresses
They cover all the table top lenght. Made in a long lasting material, sterilizable in autoclave, x-ray translucent and elastics. They are independently removable.

- Base
For solaris, it is moveable by four large antistatic castors, 2 directional and 2 pivoting with brake. For Gima and Gima tr (mechanical and semi-automatic) base is completely made of stainless steel to ensure perfect stability. It is provided with a locking system to the floor through a foot bar. Transport is allowed by 3 antistatic wheels, one pivoting and 2 directional.

- Movements
For solaris: Trendelenburg and Reverse/Trendelenburg with a “quick hydraulic action” and lateral tilt right-left 20° by crank. For Gima and Gima TR same table movements as above, work through a mechanical system moved by two cranks, positioned at the side, easily retractable, for semiautomatic by remote control.

- Longitudinal translation
Both Gima TR models offer manual longitudinal translation of table top of about 300 mm to allow total elimination of column encumbrance for 100% transparency of top.

- Full range of accessories
All tables come with mattress included, semiautomatic also includes control (with 1 m cable) batteries and crank for emergency of engine.

Technical Specifications:

  • Table top size: 200 x 48 cm
  • Height: 70-105 cm
  • Lifting stystem: electric

- Trendelenburg: 35°
- Reverse Trendelenburg: 25°

  • Lateral tilt right-left: 25°

Table top composition

  • Head section: extractable and inclinable (+25° -90°)
  • Back section:

- inclination (-20° +80°) by gas spring
- size: 48 x 51 cm

  • Pelvis section size: 48 x 49 cm
  • Leg section: 2independent sections with following manual movements:

- opening right/left of 0°/90°
- inclination +30° -90°
- both parts are easily independently extractable

  • Weight: 1610 Kg
  • Operating table capacity: 250 kg
  • Made in Italy

Extra informatie

Artikelnummer: 04110527566000
Levertijd: 30 werkdagen
