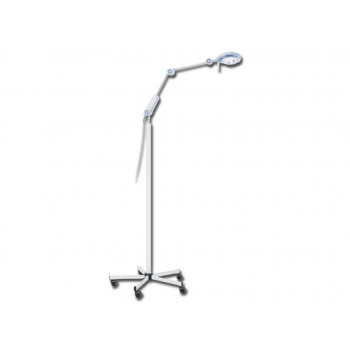

SATURNO OPERATING LED LIGHT - trolley with battery

€ 2.900,00Excl. BTW

Productbeschrijving

SATURNO is a shadow-less type lamp suitable for small surgery, gynaecology and examination. Available in three versions: mobile with castors, wall and ceiling.

  • Light beams are generated from 9 LEDs - 2.5 W each
  • Heat is dissipated through aluminium cover reflector.
  • Selection of 2 different white light temperatures: 5000 °K and 4500 °K
  • Light intensity adjustable at 6 different levels by a key on front membrane
  • Luminous intensity 30000 lux at 1 m. Diameter of illuminated field 28 cm
  • Adjustable friction bearing are mounted on every articulation of the lamp
  • Thanks to optical concept, no need to be focus adjusted
  • Battery group with charger: 3 hours autonomy, 6 hours recharging.

Technical Specifications:

  • Light intensity at 1 m distance: 30,000 lux
  • Colour temperature adjustable: 4500/5000 ± 5% °K
  • 9 LEDs: 2.5 W
  • Average LED life: 50,000 h
  • CRI (chromatic rendering Index): 96 Ra
  • Light field where the illumination reaches 10% of Ec (d10): Ø 25 cm
  • Light field where the illumination reaches 50% of Ec (d50): Ø 12.5 cm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 20% of Ec: 228 cm
  • Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: 136 cm
  • Total radiated energy Ec: 105 W/m2
  • Diameter of the reflector: 19.5 cm
  • Useful lighting surface of the cupola: 65 cm2
  • Weight (ceiling, mobile, wall): 12 - 14 - 13 kg
  • Power requirements: 100-240V, 50-60 Hz
  • Minimum height of the room (ceiling version): 240 cm
  • Standards: IEC 60601-1 IEC 60601-2-41, MDD 93/42 CEE, medical device of Class I
  • Warranty 12 months - mechanical components warranty 10 years
  • Made in Italy

Extra informatie

Artikelnummer: 04126749101002
