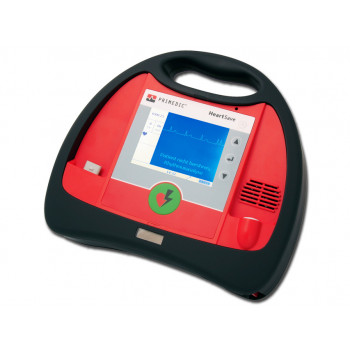

PRIMEDIC HEART SAVE AED M with monitor, AKUPAK rechargeable battery and clip charger

In different languages

€ 2.999,00Excl. BTW

* Verplichte velden

€ 2.999,00Excl. BTW

Productbeschrijving

The convincing feature of the new PRIMEDIC™ HeartSave is its easy, safe and speedy operation. With the new biphasic "Current Controlled Defibrillation" pulse, we are setting new standards in defibrillation technology.The device performs an automatic ECG analysis within 12 seconds and decides whether a defibrillation is necessary.Then a touch of a button is enough to trigger the life-saving electric pulse that eliminates the ventricular fibrillation. Thus valuable seconds and minutes are used to save life.

HEART SAVE AED-M with monitor and lithium battery 200 discharges
Automatic external defibrillator incl. monitor for indication of operation duration, ECG, heart rate, identified VF/VT.

Main features:

  • One-button operation
  • Intuitive and easily handling
  • Status indicator
  • Lithium-battery
  • No energy selection required
  • Current controlled defibrillation
  • SaveCard, 100 hours for internal ECG andvoice recording
  • Regular self-test
  • Dimensions: approx. 26 x 26 x 8.5 cm
  • Weight: approx. 2 kg
  • Made in Germany

Technical Specifications:

  • Defibrillation:
  • Wave: biphasic, current controlled pulse
  • Energy 140-360 j
  • Charging time: < 12 sec
  • Operating modes: asynchronous
  • ECG:
  • Lead: II
  • Patient's impedance range: 20-200 Ohm
  • Heart rate: 30-300 per min
  • VF:VT Detection:
  • VF/VT Detection
  • Analysis time 6-12 sec
  • VF threshold 0,2 mV
  • Asystole threshold <0,2mV
  • Artefact-Pacemaker detection
  • LCD Monitor:
  • 95 x 72 mm (diagonal 4.7"/120 mm)
  • 320 x 240 (pixel size 0,36 x 0,36 mm)
  • Storage battery status display
  • Speed 25 mm/s
  • Heart rate, number of defibrillation, number of VF/VT,
  • Total resuscitation time
  • Electrodes:
  • Non polarized electrodes, 2 years storage
  • Cable length 1,5 m
  • Data backup:
  • Internal memory 8 MB backup
  • Removable memory 32-128 MB
  • Voice recording
  • Power supply:
  • Lithium battery or Rechargeable (Power pack 90-260 V, 50/60 Hz)
  • Battery: Lithium | Rechargeable
  • Type: LiMnO2 | NiCd
  • Battery storage: 5 Years
  • Discharges: 110 | 56
  • Monitoring: 11 h | 5 h
  • Voltage: 16 V | 10.6 V

Extra informatie

Artikelnummer: 04141533440xxx
