ELLIPTIC LIGHT

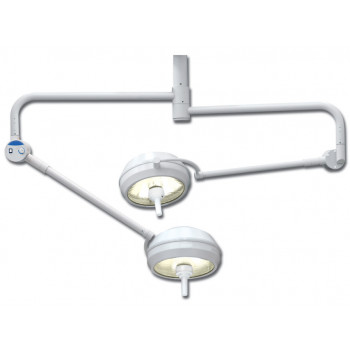

ELLIPTIC LIGHT - D800

€ 8.600,00Excl. BTW

* Verplichte velden

€ 8.600,00Excl. BTW
30 werkdagen

Productbeschrijving

Please specify ceiling height with order.
ELLIPTIC LIGHTS
The correct illumination of the operating field requires “Quality light”. Quality GIMA offer, satisfy requisites of quality:

  • exact reproduction of IRC colours
  • total elimination of the shadows on the operation field
  • depth illumination to highlight the smallest details
  • cold light, avoiding dehydration of the tissue
  • uniform wave length

These high technology apparatuses are designed to guarantee technical-illumination performance, unique of its kind.
Complex mathematical calculations permitted the creation of the original and revolutionary stratified and in-depth multi-elliptical reflector for intense shadowless light. The reduced Size and the lightness of the reflector give the product stability and make it extremely easy to handle. Special filters eliminate the infrared rays generated by the halogen lamps, guaranteeing cold light. The luminous beam is always in focus, from a minimum distance of 60 cm. The diameter of the illuminated field is manually adjustable by rotating the sterilizable handle at the centre of the reflector.
Other features:

  • Luminous intensity can be adjusted electronically by 20000 lux up to maximum intensity
  • Central and lateral no stop 360° rotation
  • Rapid engagement handle sterilizable at 134° C
  • Diffusion screen in tempered glass protects luminous source
  • Light aluminium structure (Ø 60 mm) for easy installation
  • Optional battery group consisting of batteries, battery charger, and electric circuit with 1 hour autonomy.
  • "Elliptic" reflector for excellent luminous intensity
  • DLE device consisting of electronic commutation card and damage of main lamp for immediate reserve lamp switch-on in case of damage of main lamp (standard for D600, optional for D400).

Lights include iron anchoring tube, ceiling welded plate, covering and control panel for light intensity regulation. Conform to the 93/42 CE Medical Device directive and marked CE as a CLASS I medical device.

•Cutting-edge technology
Engineering excellence aimed at developing safe, innovative, efficient surgical lights with a matchless design. Every mechanical and electrical component have been mercilessly tested for years before being approved for surgical use.
•Accurate colours reproduction
The perfect representation of CRI (colour rendering index) is the ability of a luminous source to restore the different colours of the visible spectrum without modifying the tints. The “sunlight” treatment of our lamps allows a colour temperature of 4200 °K for a white light, similar to that of sun, which is extremely comfortable for the eyes.
•Visibile Wavelength
Wavelength of halogen lamp is uniform in the visibile spectrum and is not subjected to continuous
bands of radiation. On the other hand gas discharge lamps emit a luminous spectrum composed of
multiple lines or bands of radiations, a phenomenon caused by the interval between continuous
electric discharges inside the cylindrical quarz tube (bulb of the lamp)
•Elliptic reflector
Made in aluminium, consisting of tens of connected ellipsoids joined together. The elliptic shape provides exceptional luminous intensity and a reflected light always in focus through a low energy halogen lamp.

Technical Specifications:

  • Performance
  • Light intensity at 1 m distance (Ec): 200 (100+100) klx
  • Color temperature of radiated energy: 4200 °K
  • Color rendering index (CRI): 94 RA
  • Light field adjustable from to: 10/18 cm
  • Total radiated energy Ee where the illumination reaches max level: 230+230 W/m ²
  • Electrical data
  • Operating power: 230 V (110 on request) – 50/60 Hz
  • Electrical absorption: 120+120 VA
  • Lamp type (24V): 100+100 W
  • Average lamp life: 2000+2000 hours
  • Electrical control of the illumination: dimmer
  • General data
  • Colour: Ral 9003
  • Minimum height of the room: 270 cm
  • Norms: 93/42 EEC – IEC 60601-2-41 standards
  • Diameter of the dome: 40+40 cm
  • Diameter of elliptic reflector: 36+36 cm
  • Useful lighting surface: 740+740 cm²
  • Weight: 35+35 kg

Extra informatie

Artikelnummer: 04126630717xxx
Levertijd: 30 werkdagen
