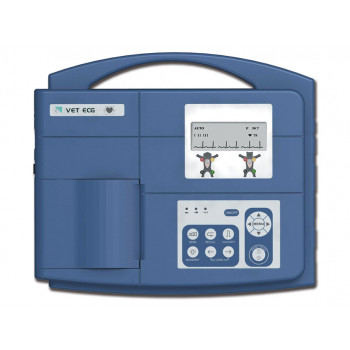

Digitale veterinaire 1 kanaals elektrocardiograaf

€ 595,00Excl. BTW

Productbeschrijving

VE-100 - 1 channel ECG

  • Complete digital design
  • LCD display waveforms, parameter configuration
  • High resolution thermal printer
  • Built in rechargeable Li-ION battery for 3 hours use (AC/DC supply)
  • Complete digital filter, avoid baseline drift, AC, EMG interfere
  • Baseline automatically adjustable, optimizes printing position
  • Selectable auto/manual operation

Technical Specifications:

  • Lead: standard 7 lead
  • Acquisition mode: single
  • Frequency response: 0.05 Hz ~ 150 Hz
  • Sensitivity: 2.5, 5, 10, 20 (mm/mV)
  • Input impedance: >10 MO
  • Filter:
  • EMG Filter 35 Hz (-3dB)
  • AC/DFT Filter 50/60Hz (-20dB)
  • Recording mode: Auto/Manual
  • Safety standard: IEC I/CF
  • Power supply:
  • AC: 100-115-220-240V, 50/60 Hz
  • Built-in rechargeable Li-ion battery: voltage=14.4 V
  • More than 3 hrs, continuously operation under battery supply
  • Thermal paper: 5 mm x 30 m
  • Paper speed: 25/50 mm/s (± 3%)
  • Size: 300 x 260 x 75 mm
  • Weight: 2.3 kg (with battery)
  • Display: 192x64 pixel LCD
  • External input/output:
  • input: =100 kO; Sensitivity: 10 mm/V ± 5%
  • output: =100 kO; Sensitivity: 1 mm/V ± 5%
  • Communication interface: RS232

Standard accessories:

  • 5-lead veterinary ECG cable (Ø 4mm, banana connector, IEC)
  • Veterinary clip electrodes (set of 5, match Ø 3-4 mm ECG cable)
  • 1 Paper roll
  • Rechargeable lithium battery (2,200 mAh)
  • Manual: GB, IT - on request FR, ES, DE

Extra informatie

Artikelnummer: 04138133305000
